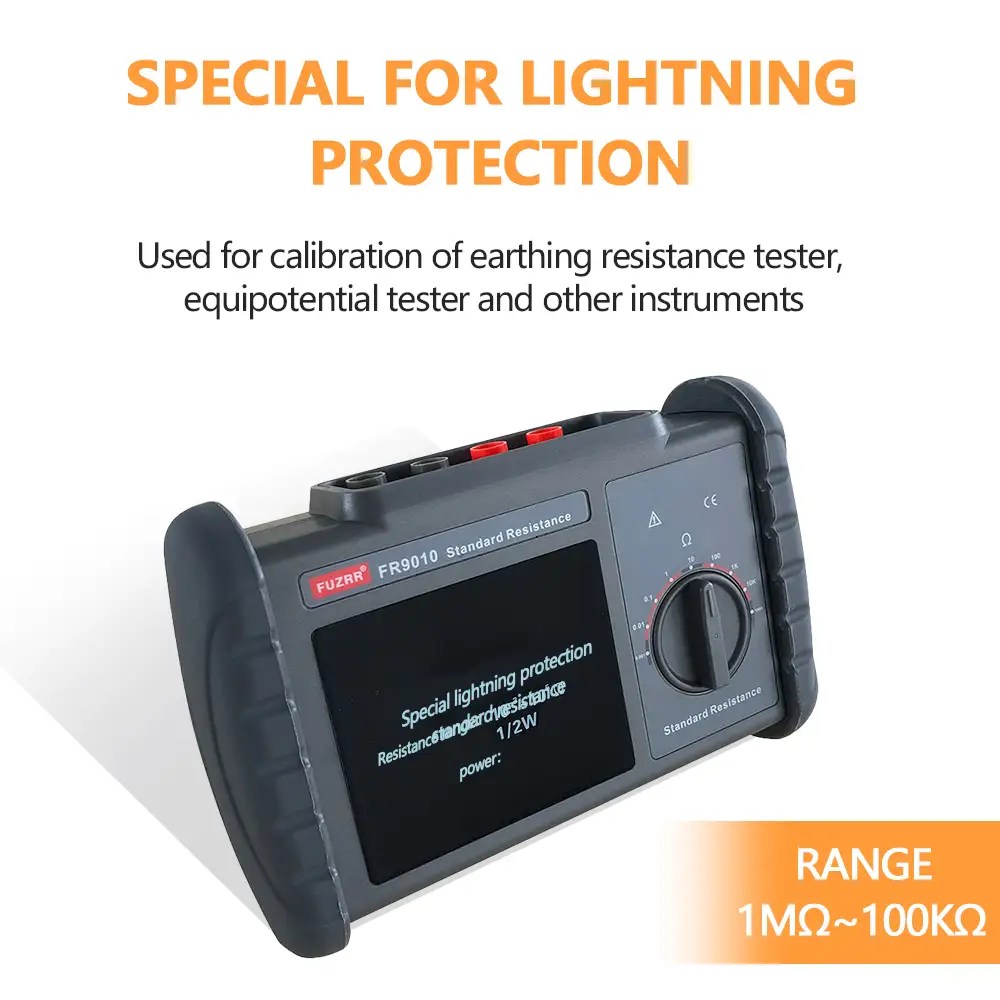

FR9010 lightning Protection Special Standard Resistor

Please enable JavaScript in your browser to complete this form.

Function

Used for calibration of ground resistance tester, equipotential tester, etc.

Range

1mΩ,10mΩ,100mΩ,1Ω,10Ω,100Ω,1KΩ,10KΩ,100KΩ

Wiring method

Four-wire method

Capacity factor

1/2W

Temperature coefficient

±25ppm

Size

L/W/T:187*119*48mm

Test line length

Red 0.5m,black 0.5m each 2pcs

Weight

About 550g

Working temperature and humidity

-10℃~40℃;below 70%rh

Storage temperature and humidity

-20℃~60℃;below 80%rh

Insulation resistance

More than 10MΩ(between the circuit and the housing 500V)

Pressure resistance

AC 3700V/rms(between the circuit and the housing)

Suitable for safety regulations

IEC61010-1, CAT III 600V, pollution level, JJG166-1993 《DC Resistance Test Procedures》
