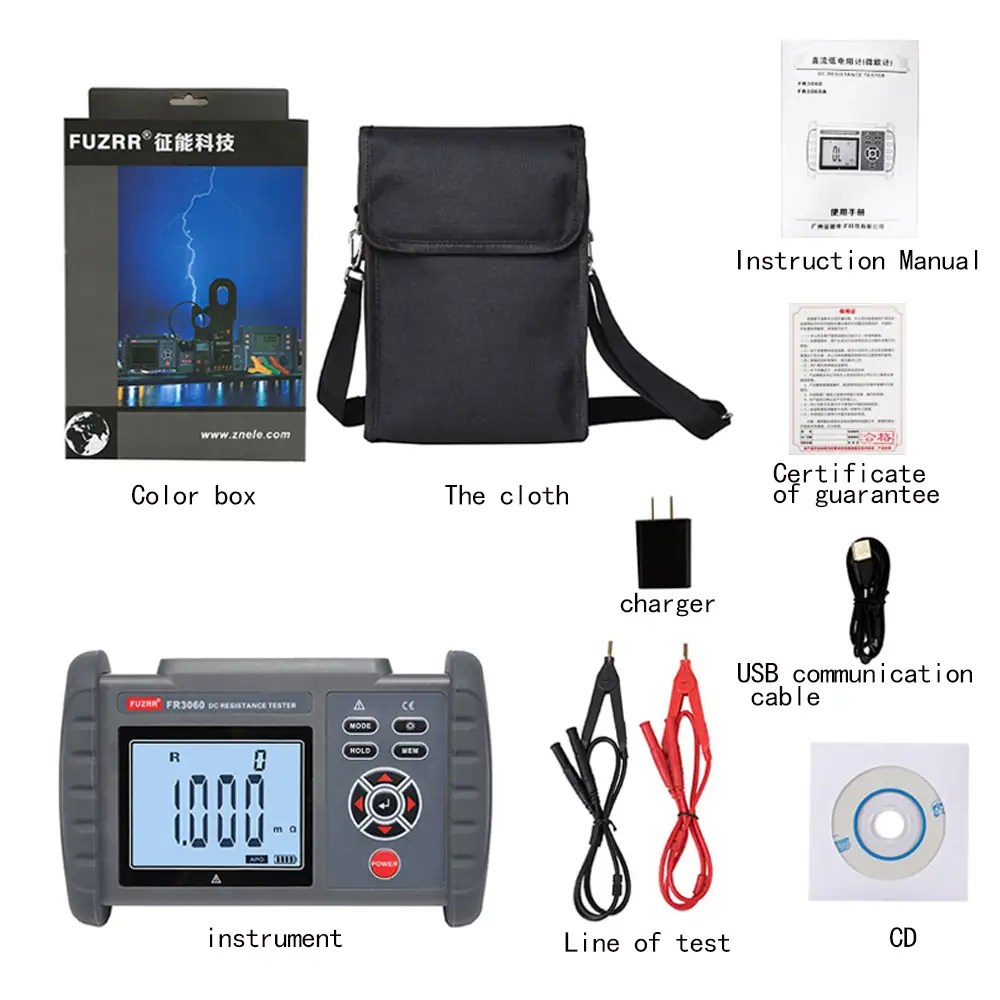

FR3060 Portable Reisistance tester 1A

measure time: About 2 times/sec
USB interface:With micro USB interface
Data storage:500 groups, "MEM" storage indication, display "FULL" symbol to indicate storage is full
Test current ≥1A
Detection method:Four-wire method test

Model	3060A	FR3060
Resistance Range	0.01mΩ～30.00KΩ	0.001mΩ～300.0KΩ
Resolution	10uΩ	1uΩ
Accuracy	±0.1%FS	±0.1%FS
Data storage	500 sets	500 sets
USB Data upload function	N	Y
Charging function	Y	Y

Function	Mainly used to measure the wire resistance of cables, the contact resistance of switches, connectors, relays, the resistance of coils, motors, transformer winding and metal riveting resistance, the connection resistance test between metal components, the low-value resistance test, and the grounding grid Resistance test of connecting conductor, contact resistance test, etc.
Detection method	Four-wire method test
Test current	≥1A
Open circuit voltage	≤4.2V
Overload protection	Y
Power	Measuring power≤8W
power supply	DC 3.7V 2000mAh
Backlight	Controllable gray and white screen backlight, suitable for dim places
Display Model	LCD
LCD Size	72 mm×55mm
Instrument size	187 mm×119 mm×50mm
Test line length	About 60cm，red, black 1pcs
measure time	About 2 times/sec
USB interface	With micro USB interface
Communication line	micro USB 1pcs
Data storage	500 groups, “MEM” storage indication, display “FULL” symbol to indicate storage is full
Data review	Data review function：“MR”symbol display
Overflow display	Over-range overflow function: “OL” symbol display
Battery voltage	Real-time display of battery power, reminding timely charging when battery voltage is low
Automatic shut-down	“APO” indicates, automatic shutdown after 15 minutes
Power consumption	Standby: about 100mA (backlight off)
	Turn on backlight: about 105mA
	Measure：2A Max(backlight off)
Weight	Instrument:480g(including battery)
	Test line：250g
Working temperature and humidity	-10℃～50℃；below 80%rh
Storage temperature and humidity	-20℃～60℃；below 70%rh
Overload protection	AC 220V/0.0001 second between C1-C2 P1-P2 ports, after overload protection, you need to restart the meter to test normally
Insulation resistance	More than 10MΩ(Between circuit and case 500V)
Pressure resistance	AC 3700V/rms(Between circuit and case)
Electromagnetic properties	IEC61010-4-3，Wireless frequency electromagnetic field≤1V/m
Suitable for Safety Regulations	IEC61010-1, CAT III 600V, Pollution Level 2, JJG724-1991 “Determination of Direct Current Digital Ohmmeter”, JJG166-1993 “Dialect Resistor Verification Regulation”, “DL/T967-2005 Loop Resistance Tester and DC Resistance Fast Tester Verification Procedures
